Stepped lap cold-rolled oriented silicon steel sheet transformer core design can achieve low no-load loss and low noise, and the transverse stepped lap is conducive to the assembly of the upper yoke. Cold-rolled, grain-oriented silicon steel sheet transformer cores of all types can be produced in a variety of forms, such as stepped lap, overlap, 45 ° chamfered, with or without holes, and can be made of electrical steel of the required quality, up to a maximum width of 800 mm. Evergreen uses the latest computer-controlled length cutting machine to produce stepped lap cold-rolled grain-oriented silicon steel sheet transformer cores.

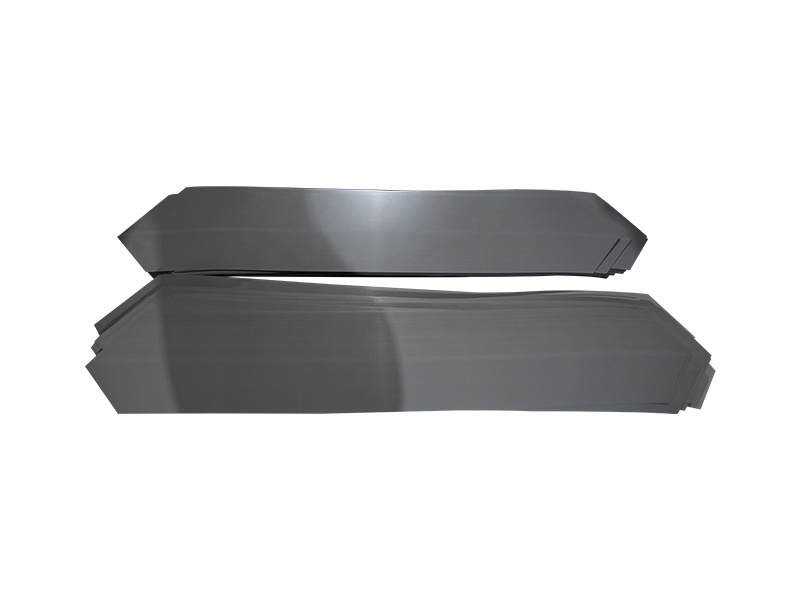

Core laminations for power and distribution transformers are manufactured from various grades of cold rolled, oriented silicon steel sheets. Laminations can be made in a variety of shapes and sizes and are cut to the exact geometry required by the 90 ° and 45 ° angle cutting systems. Because the manufacture of transformer laminations involves highly sophisticated engineering, we always strive to rigorously inspect key quality indicators such as burr level, lamination height, dimensions, and required weight. We have firmly established ourselves as one of the leading manufacturers and suppliers of cold rolled oriented silicon steel sheet transformer cores with headquarter in Jaipur. We manufacture transformer core laminations for power and distribution transformers. We can deliver cold rolled oriented silicon steel sheet transformer cores in sheet or strip packing according to your packing requirements, and can be packed into wooden boxes or pallets.
