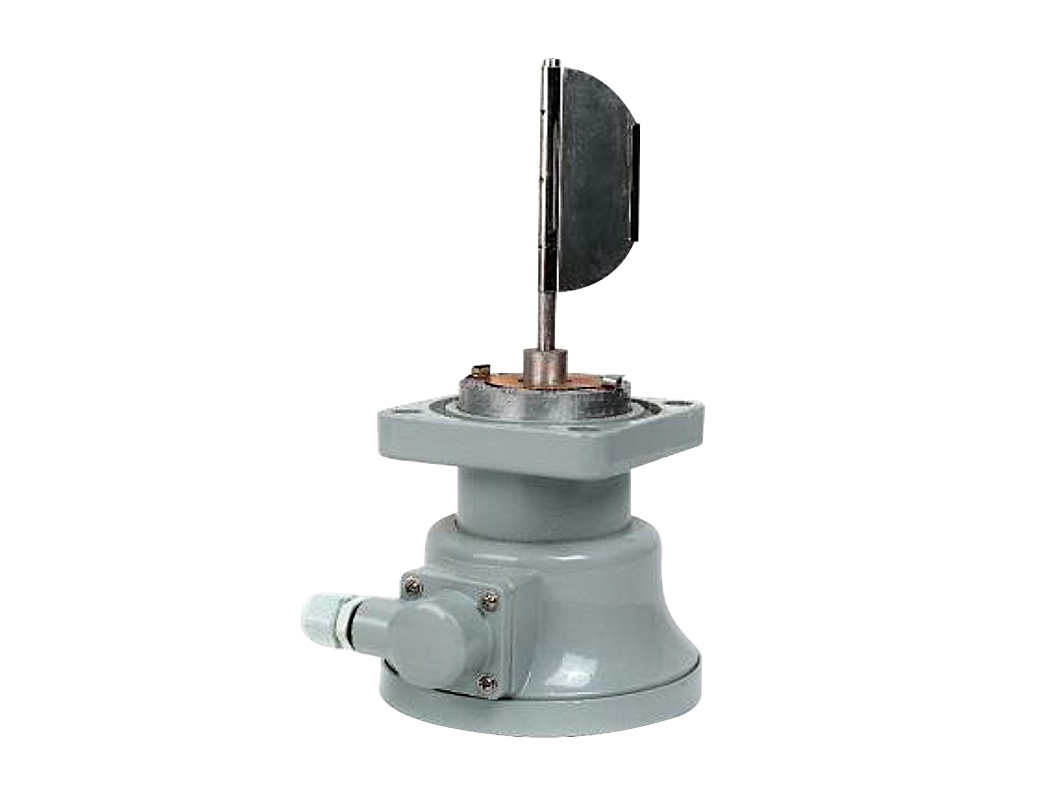

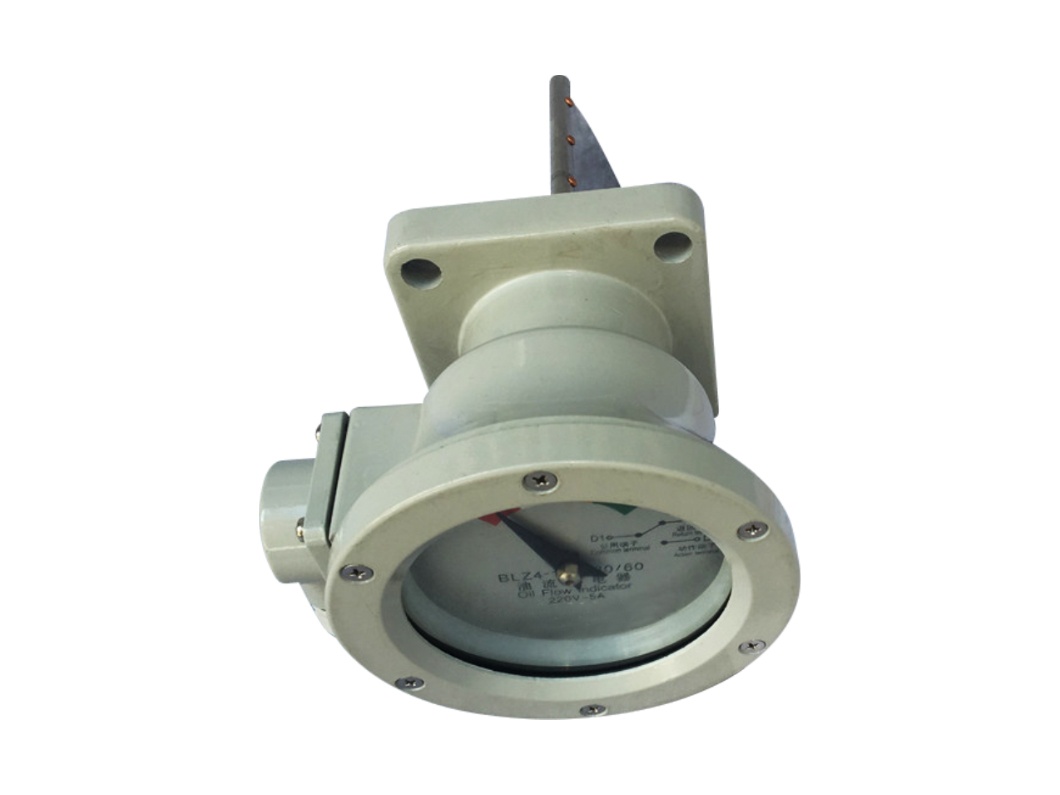

BLZ series oil flow indicator is a kind of alarm device which can monitor the change of oil flow. Its design and manufacture conform to the Chinese standard JB/T8317-2007. < Oil flow indicator Transformer Cooler > Standard.

This product can be used to monitor the operation status of OFAF cooler and OFWF cooler, as well as whether the oil pump is reversed, whether the valve is opened, and whether the pipeline is blocked. The product signals when the oil flow decreases to the set value.

Bellows flexible connection type oil flow indicator can meet the required clearance requirements when disassembling and assembling accessories. In addition, it can improve the sealing performance, reduce vibration and noise, and flexibly connect the cooler and transformer oil pump without changing the installation size. The flange connected with the corrugated pipe can be rotated freely and installed along the radial direction, which is convenient for field installation.

Model interpretation

YJ: Oil flow indicator of inverter cooler

Design serial number

Nominal diameter of connecting pipe (mm)

Rated oil flow (m3/H)

Oil flow (m3/H)

S: Speed

Y: Oil voltage

J: Relay

Nominal diameter of connecting pipe (mm)

Voltage regulation model

I. Conditions of service

I. Ambient temperature: -30 ℃ ~ + 40 ℃

Ii. relative humidity: not more than 90% at an ambient temperature of + 25 ° C.

III. The oil temperature shall not exceed 90 ℃.

Iv. The mounting position of the indicator shall be free from severe vibration.

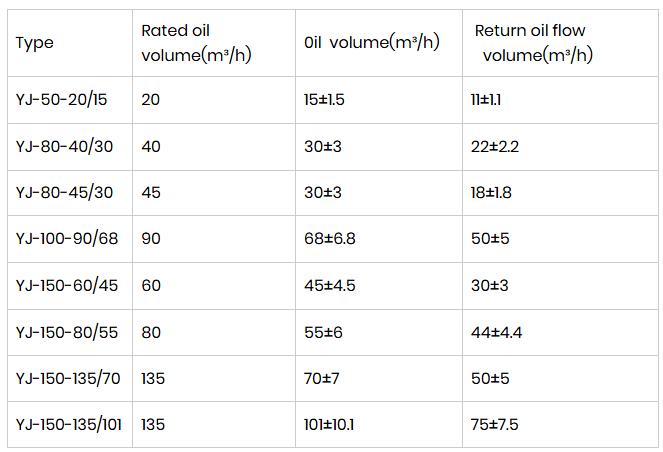

II. Main Specifications

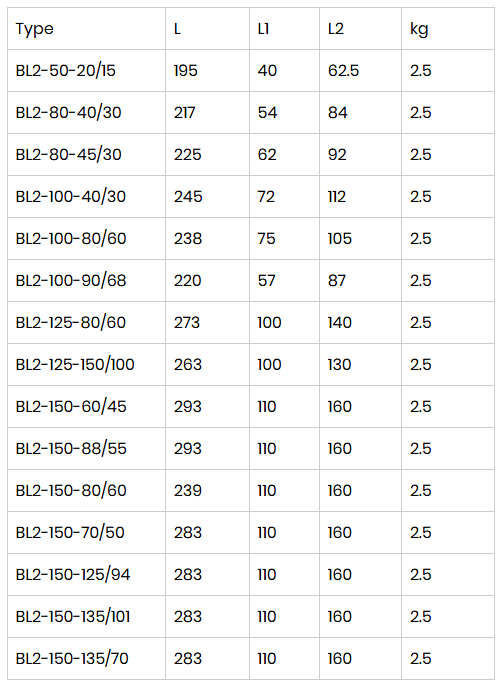

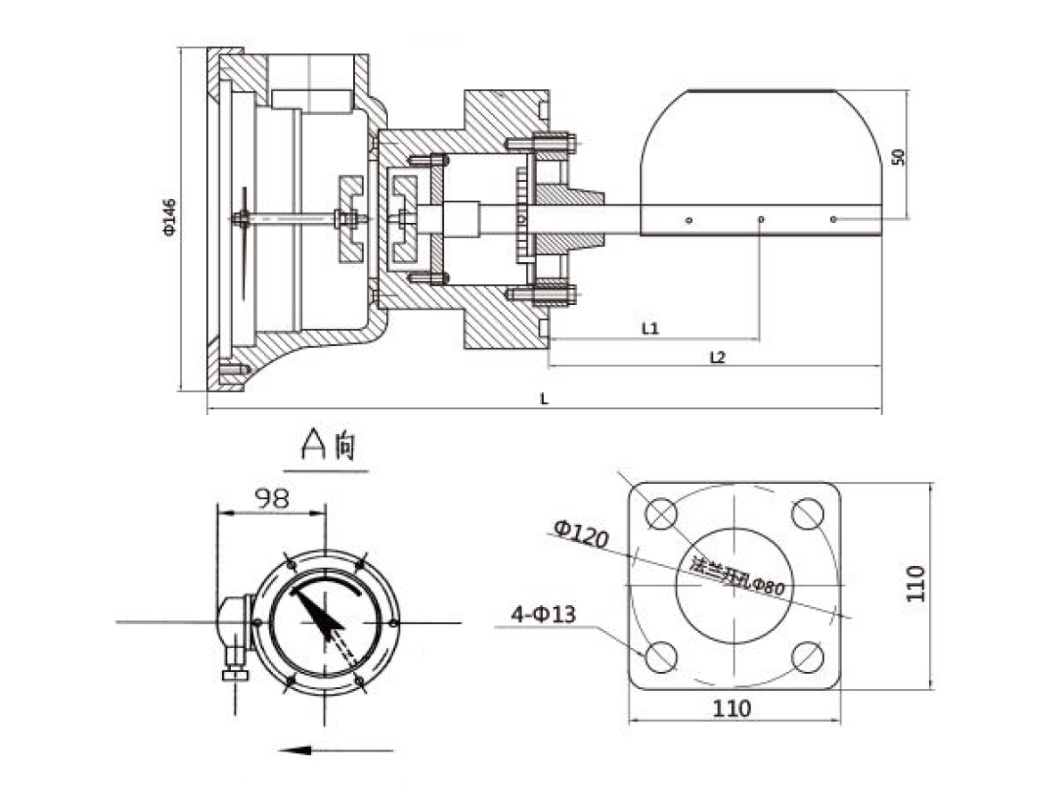

III. Main dimensions of oil flow relay

Our advantage

Travel recording function

Oil shortage alarm function

Light gas alarm function

Heavy gas alarm function

Avoid frequent operation of relay

Sensitive, accurate and safe
