Off-circuit tap changer is a switch for three-phase oil-immersed transformers with rated voltage of 10 kV and rated current of 63 A or less and 125 A. The secondary voltage can be adjusted by changing the number of turns in the primary winding of the transformer in the absence of excitation. The operating temperature range of the tap changer in oil medium is -25 ℃ to 100 ℃.

The non-excited disc tap changer is an embedded compound resistance transition structure, which integrates the functions of a tap selector and a shunt switch, and is provided with an independent oil chamber. The utility model has the advantages of simple structure, long service life, convenient installation and maintenance, etc. The technical performance of the switch conforms to the standards of IEC60214 and GB10230 "On-load Tap-changer".

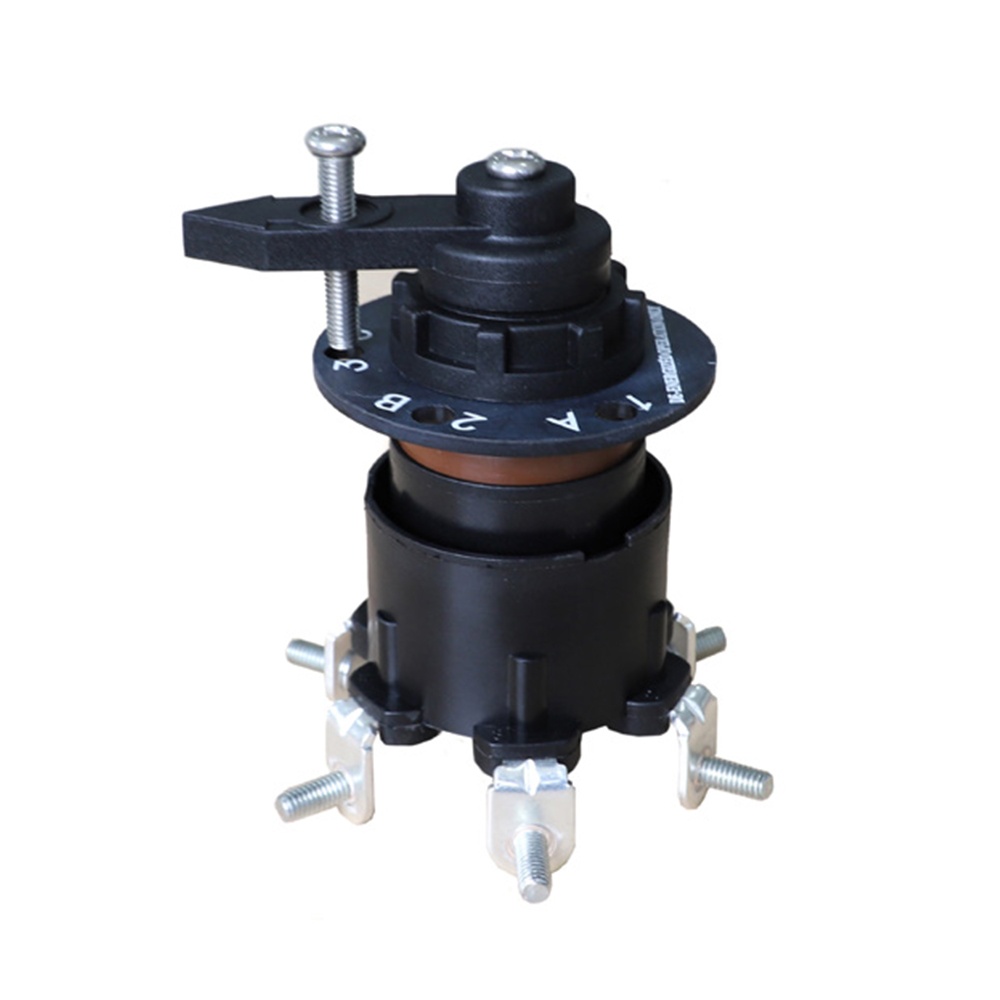

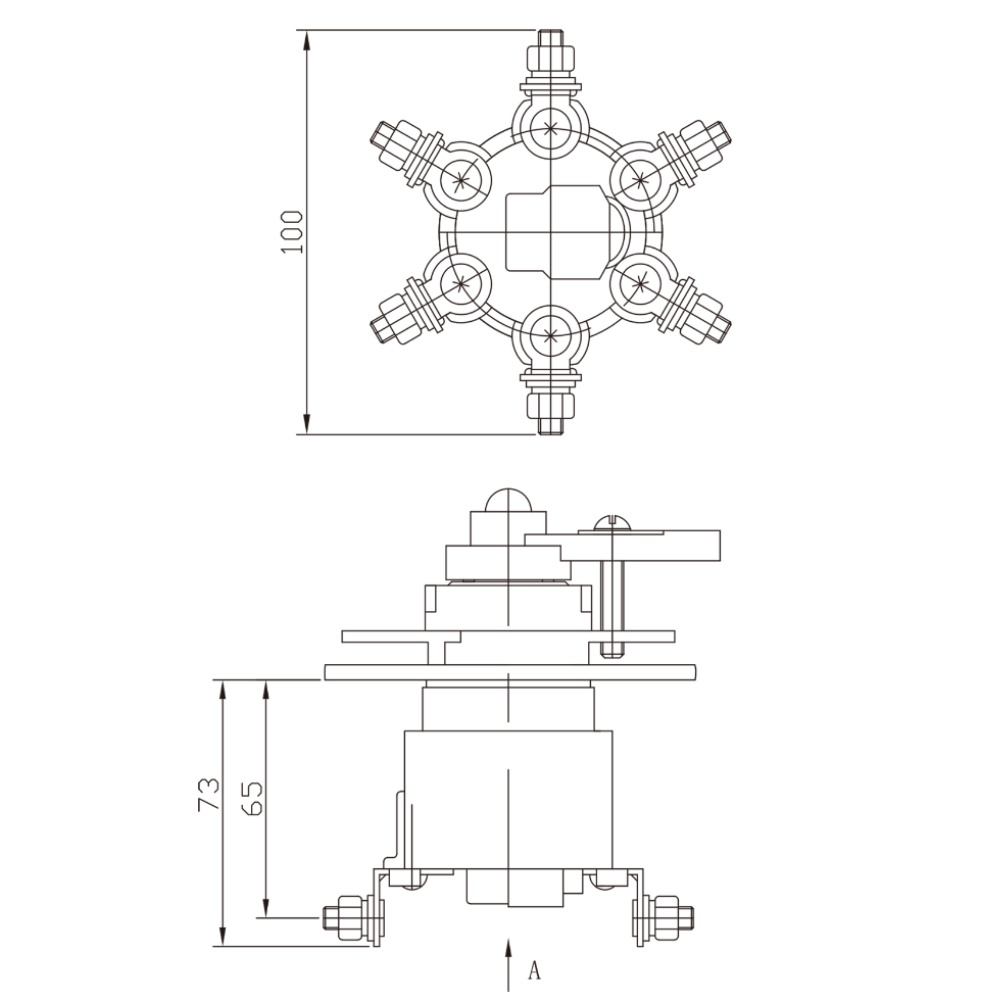

WDPII2 Single-phase Tap Changer

Used in mineral oil or silicone oil

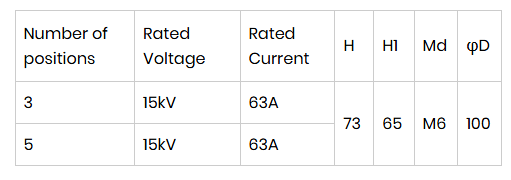

Rated voltage 10 KV-15 KV

Current rating 30 A-63 A

Knock position: 3-5

Model interpretation

W: Power off

S: three-phase; D: single-phase

T: Linear tap changer

Voltage regulation model

Rated current

Rated voltage

Number of tapping heads

Number of tap positions

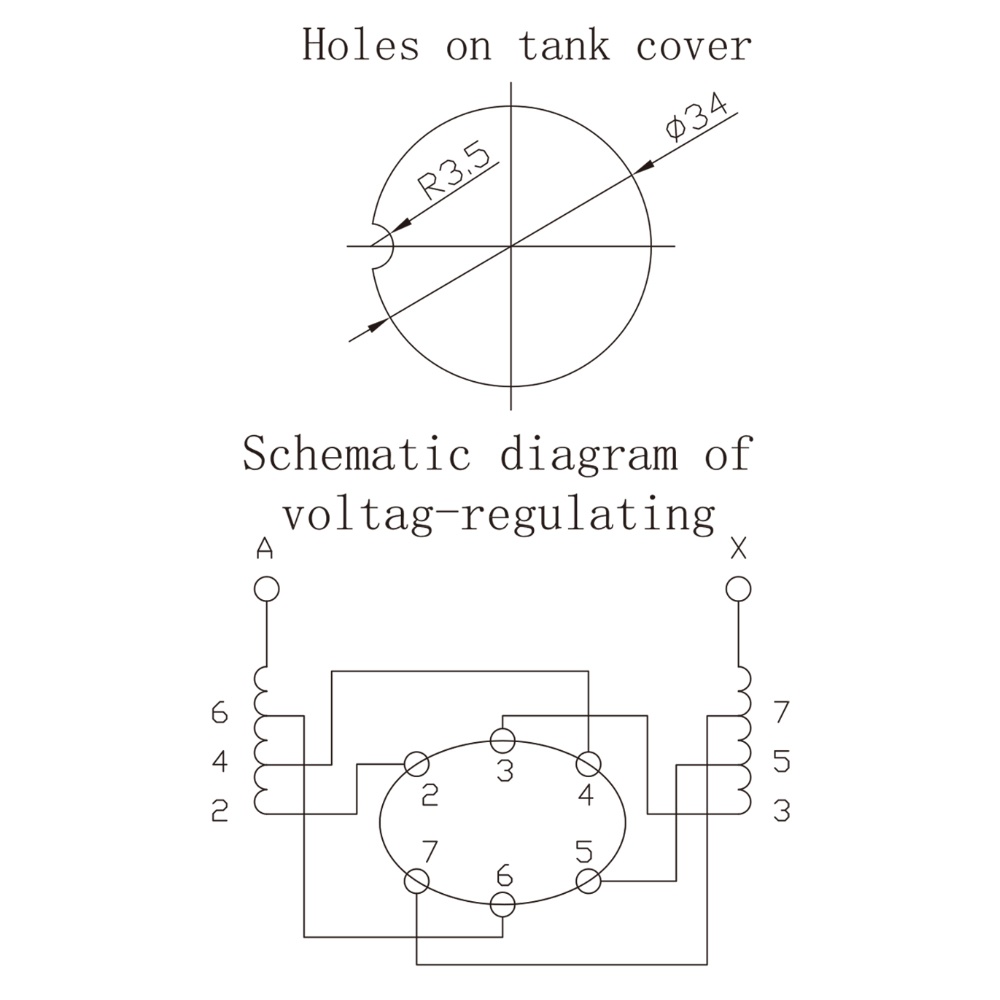

Voltage regulation model

I: End point

II: Center point

III: Neutral point

IV: Y- △ conversion

V: Series-parallel connection

Our advantage

High pressure capability

Powerful anti-aging ability

Strong lightning protection impact

Strong protection

Smooth use

Stable use
