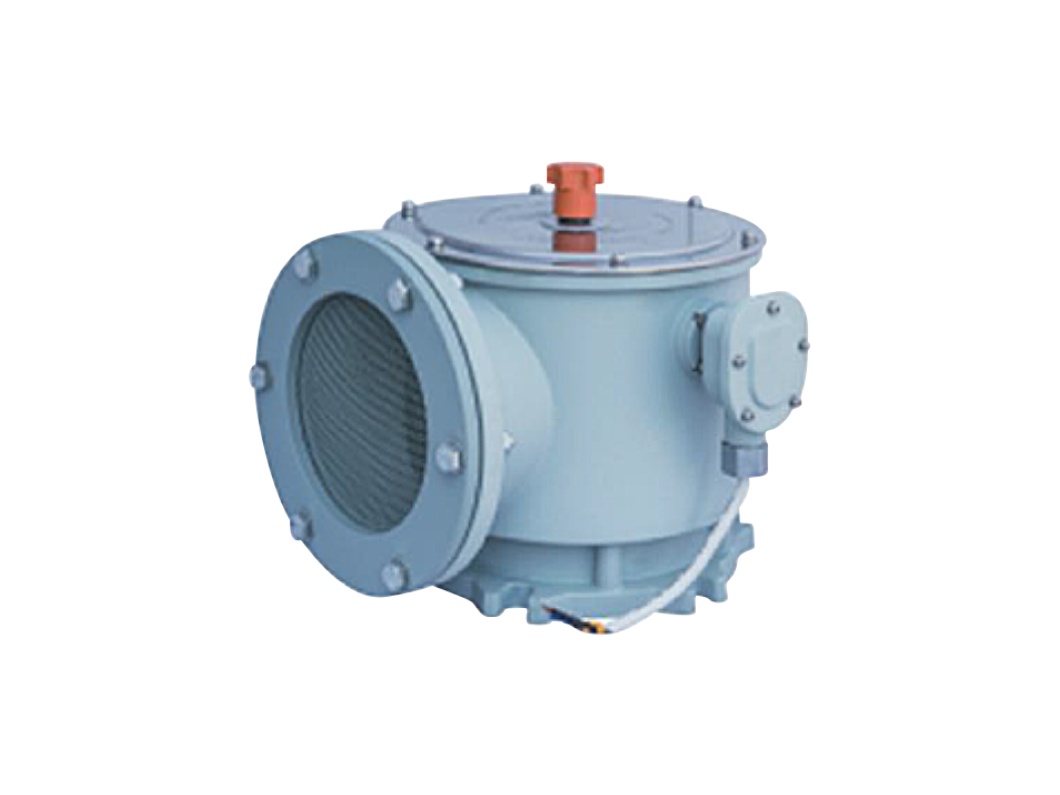

Φ80mm and Φ130mm caliber pressure relief valves and directional oil injection pressure relief valves are mainly used for oil tanks of large oil-immersed transformers and reactors. Users can select caliber relief valve or directional injection relief valve when ordering products according to their needs (two independent electrical signal systems are led out separately). In addition to the traditional electrical alarm function, the pressure relief valve can also enhance the electrical alarm function of the computer.

Model: YSF-50

Injection aperture (mm): 25-50 mm

Working pressure range (bar): 0.2 ~ 0.7

Application

Pressure relief valves are suitable for oil-immersed power transformers, power capacitors and cutout switches for tank protection.

When a fault occurs in the operation of the oil-immersed transformer, due to the overheating of the coil, the transformer is partially charged, and the pressure in the oil tank rises rapidly. At this time, the pressure relief valve will act quickly within 2 milliseconds to prevent the tank from deforming or bursting. When the pressure in the oil tank rises again and reaches the opening pressure, the pressure relief valve acts again until the pressure in the oil tank drops to the normal level. At the same time, it can also effectively prevent external air, dust, impurities, water vapor, etc. From entering the transformer in operation, thus protecting the transformer from damage.

Working status:

1.Ambient temperature range: -30 ℃ ~ + 50 ℃

2.Installation position: You can confirm the installation position of the pressure relief valve on the oil tank.

Our advantages:

Lightning protection

Corrosion protection

Rust-proof

Mature Brass Processing
